EPCOM PROAUDIO - Voice Evacuation Alarm System Connection Template

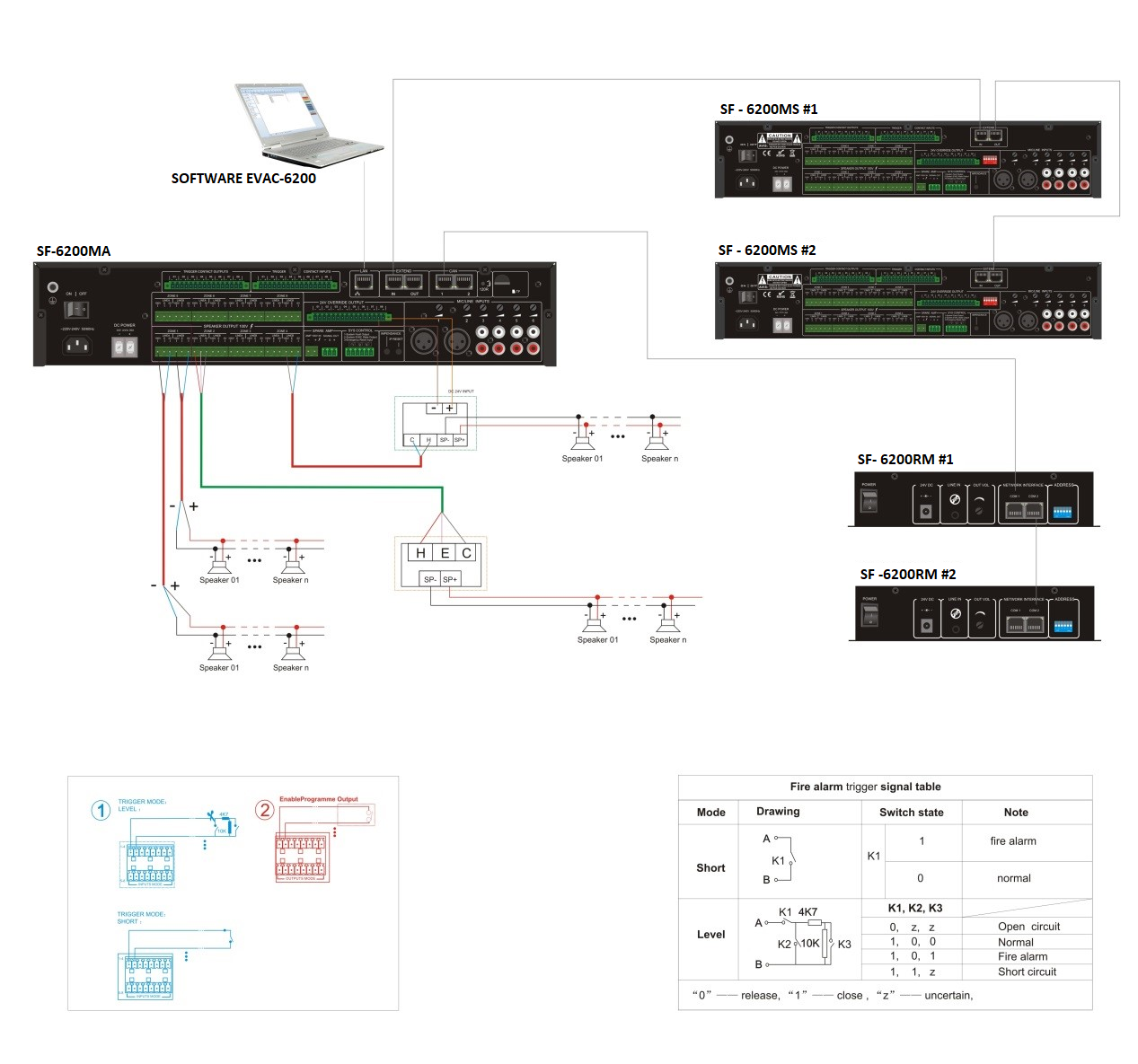

Below is the connection diagram of a voice evacuation alarm system, consisting of an 8-zone evacuation controller (SF-6200MA), two 8-zone evacuation routers
(SF-6200MS) and 2 Microphones of 16 zones (SF - 6200 RM), the connection of the speakers in the zones is also shown.

Note: It is important to calculate the consumption in watts of the total speakers you wish to place in your system, adapting it to the power that the equipment can deliver.
